Established in 1968 to provide genuine spare parts for Sanyang (SYM brand) motorcycles and scooters (see www.sym.com.tw), Teamworld Industries Corp. has grown into a leading supplier of motorcycle/scooter parts and accessories. Today, we stock over 34,000 items at our 19,000 sqm central warehouse; have a national network of thirty-two domestic spare parts centers; export to over 25 countries; offer well-known branded names (i.e., BANDO, DID, NGK, YUASA) and accessories; supply well-known OEM motorcycle/scooter manufacturers such as Aprilia, Cagiva, Malaguti, Minarelli, Moto Guzzi, and Kawasaki; and have Asia-wide sourcing capabilities/production facilities. Products manufactured by our own factories in Taiwan, China & Vietnam include: speedometer, motorcycle cable, brake shoe, lubricant, switch and key set, gasket, as well as other fast moving parts.
Locations of visitors to this page
[2023-06-05] Stock Sale : COMEUP Cub3 Winch for ATV, UTV, Trailer, Heavy Transporter.

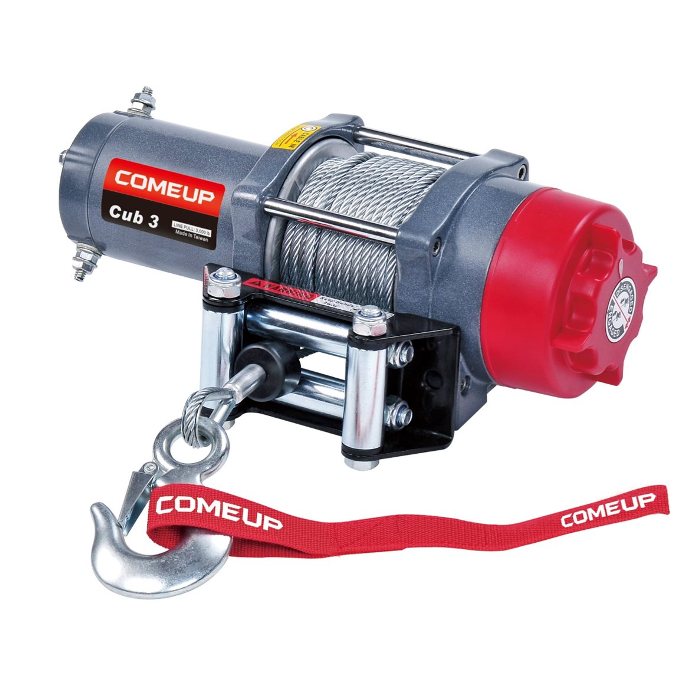

COMEUP Cub3 Winch (3,000 lb Line Pull)

* Stock sale with good price
* instant delivery from stock

Features :
- 3,000 lb (1,361 kg) Line Pull
- Winch Drum Centred Avoids the Interference of Rope and Provides Streamlined Appearance.
- Mechanical Load Holding and Dynamic Brake for 100% Braking.
- High Efficiency, Low amp Draw and Sealed Permanent Magnet Motor.
- Full Metal 3 Stage Planetary Gear Train for Greater Pulling Force.
- Sliding Pin and Ring Gear Clutch for Rapid Wire Rope Payout.
- Weather Sealed Contactor Gives Better Water Proof and Lower amp. Draw
- E/e Marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*01

Specification
Motor : Permanent magnet 800w/1.0hp 12V DC motor
Gear train : 3-stage planetary gears
Gear ratio : 138.5:1
Brake : Mechanical & dynamic
Clutch : Sliding pin and ring gear
Control : Handlebar rocker switch
Wire rope (mm x m) : 4.8 x 15.2 (3/16" x 50'), galvanized aircraft A7 x 19
Winch construction : Aluminium die cast housings and drum
Rotation of winch : Wire rope shall be under-wound orientation only
Drum size (mm x mm) : 55 x 75 (2.2" x 3")
Mounting bolts pattern (mm x mm) : 76 x 124 (3"x 4.9")

Contact us directly to buy at GOOD price.
