[2011-06-08] ATV Winch (3,000 lb Line Pull)
Features :
- 3,000 lb (1,361 kg) Line Pull
- Winch Drum Centred Avoids the Interference of Rope and Provides Streamlined Appearance.
- Mechanical Load Holding and Dynamic Brake for 100% Braking.
- High Efficiency, Low amp Draw and Sealed Permanent Magnet Motor.
- Full Metal 3 Stage Planetary Gear Train for Greater Pulling Force.
- Sliding Pin and Ring Gear Clutch for Rapid Wire Rope Payout.
- Weather Sealed Contactor Gives Better Water Proof and Lower amp. Draw
- E/e Marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*01

Specification
Motor : Permanent magnet 800w/1.0hp 12V DC motor
Gear train : 3-stage planetary gears
Gear ratio : 138.5:1
Brake : Mechanical & dynamic
Clutch : Sliding pin and ring gear
Control : Handlebar rocker switch
Wire rope (mm x m) : 4.8 x 15.2 (3/16" x 50'), galvanized aircraft A7 x 19
Winch construction : Aluminium die cast housings and drum
Rotation of winch : Wire rope shall be under-wound orientation only

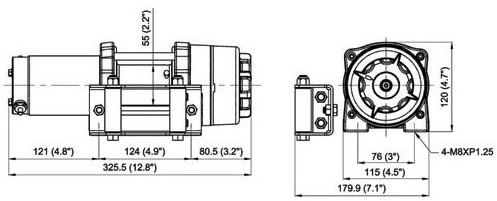

Drum size (mm x mm) : 55 x 75 (2.2" x 3")
Mounting bolts pattern (mm x mm) : 76 x 124 (3"x 4.9")

STOCK AVAILABLE, Please contact with us for further information.
